Το Live Tracking είναι ένα ολοκληρωμένο σύστημα παρακολούθησης, τηλε-διαχείρισης που παρέχει σε μια επιχείρηση - ανεξάρτητα από το μέγεθός της - τη δυνατότητα να παρακολουθεί - ελέγχει σε 24ωρη βάση από την οθόνη ενός Η/Υ, το σύνολο των οχημάτων της, στο οποίο μπορεί να συγκαταλέγονται πάσης φύσεως μεταφορικά μέσα, επιβατικά αυτοκίνητα, φορτηγά, λεωφορεία και δίκυκλα.

Έτσι μπορεί να κατανέμει καλύτερα τους πόρους της και να μειώνει το λειτουργικό κόστος της.

Παράλληλα, μπορεί να μειώνει τα χιλιόμετρα και κατά συνέπεια την κατανάλωση των οχημάτων, να ειδοποιείται για service, να κρατά ιστορικό κίνησης, και φυσικά να έχει τεκμήρια για το κάθε δρομολόγιο.

Επίσης, μπορεί να γίνεται έλεγχος των εργαζομένων που χρησιμοποιούν αυτά τα μέσα, να διαχωρίζονται οι χαμένες εργανοώρες, και φυσικά να συλέγονται πληροφορίες για την οδική συμπεριφορά του κάθε οδηγού σε σχέση με το όχημα που έχει υπό την ευθύνη του.
Δεν είναι λίγες οι περιπτώσεις όπου κρύοι κινητήρες έχουν "σπάσει" ηθελημένα από κακεντρεχείς οδηγούς, κάτι που επιφέρει μεγάλη ζημιά στην κάθε εταιρία.

Η MyTrack μπορεί να υποστηρίξει οποιονδήποτε ιδιώτη με προσωπικά οχήματα ή εταιρία με στόλο οχημάτων που θέλει ή επιβάλλεται να διαθέτει σύστημα Fleet Management (Σύστημα Διαχείρισης Στόλου) όπως:
- Μεταφορικές Εταιρίες (Φορτηγά, Ψυγεία, TIR, Μεταφορές Ζώων)
- Τaxi, Λεωφορεία, Σχολικά (με ειδοποίηση SMS όταν πλησιάζει)
- Εταιρικά οχήματα (Στελεχών, Πωλητών, Διανομέων, Courier)
- Ενοικιαζόμενα αυτοκίνητα, μοτοσυκλέτες, σκάφη
- Στρατιωτικά οχήματα
- Ως αντικλεπτικό για μοτοσυκλέτες, αυτοκίνητα, σκάφη, μελίσσια, και άλλα αντικείμενα

Tracker Model FM1100

The smallest FM we've ever madefleet-management-teltonika-fm1100
Small size
Car tracking
Parametrized operation (acquire & send)
Integrated scenarios
Overspeeding
Authorized driving (50 iButton keys)
Immobilizer
Online tracking
Low energy consumption in deep sleep mode
FM1100 is light terminal with GPS/GLONASS and GSM connectivity, which is able to get device coordinates and other data and transfer them via GSM network. This device is perfectly suitable for applications where location acquirement of remote objects is needed. So you can track your remote objects (trucks, cars etc) quickly and easily.
In case of losing connection FM1100 can store up to 8000 records, and once the connection is established the device will send stored data via GPRS. So you won't lose your data (coordinates, sensors data and etc.).
FM1100 can perform tasks on remote objects, such as monitoring engine status, controlling truck's door etc.

Application:
Track and trace
Road assistance
International logistics
Personal car's and van tracking
Fleet management

TECHNICAL DETAILS:
GSM:
Quad-band 900/1800 MHz; 850/1900 MHz
GPRS class 10 (up to 85,6 kbps);
SMS (text/data)
GPS/GLONASS:
NMEA protocol compatible. Messages: GGA, GGL, GSA, GSV, RMC, VTG, TXT
32 channel GPS/GLONASS receiver
-161 dBm sensitivity

Interface:
1 Digital Input Reserved for Ignition Status Monitoring
2 Digital Inputs
1 Analog Input (10V or 30V range)
2 Digital Open-collector Outputs (connecting external relays, LED, buzzers etc.)
1-Wire® protocol
Power supply (+10...+30) V DC
2 Status LEDs
USB Port
Configuration and firmware upload (FOTA and via USB cable)
External GSM antenna (SMA connector)
External GPS/GLONASS antenna (MCX connector)

Features:
GPS/GLONASS and I/O data acquisition
Real Time tracking
Smart algorithm of data acquisition (time, distance, angle, ignition and event based)
Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
Smart algorithm of GPRS connections (GPRS traffic saving)
Operating in roaming networks (preferred GSM providers list)
Events on I/O detection and sending via GPRS or SMS.
Scheduled 24 coordinates SMS sending
5 geofence zones (rectangular or circle)
Deep Sleep mode (saving vehicle's accumulator)
FOTA (firmware updating via GPRS)
Motion sensor
Small and easy to mount case
Roaming dependant operation (GPRS traffic saving in roaming zones)
Operation mode presets:
Advanced overspeeding detection
Driver identification (1-Wire® iButton ID key)

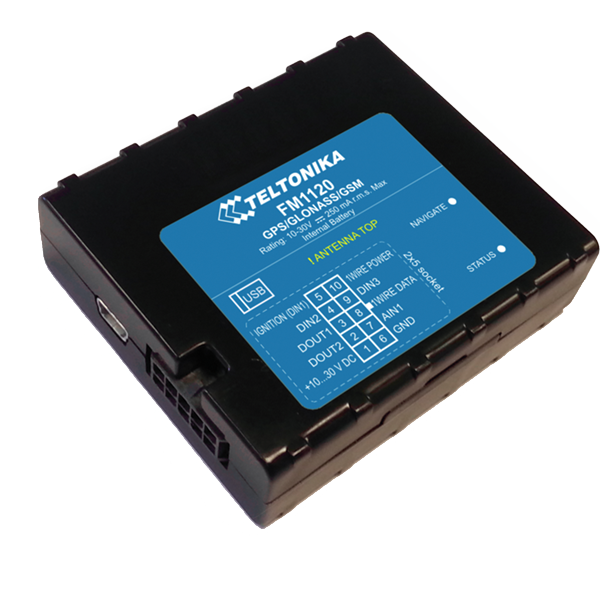

Tracker Model FM1120

The smallest FM we've ever madeFM1120

FM1120 – internal GPS antenna with battery



Small tracker with internal GPS/GSM antennas and internal battery

Technology
  • SMS
  • GPRS
  • GNSS
Hardware
  • Battery
  • 1-Wire®
  • AIN - analog input
  • Internal GNSS antenna
Firmware
  • Trip detection
  • Immobilizer
  • ALL-CAN support
  • LV-CAN support







Parametrized operation (acquire & send)
Integrated scenarios
Overspeeding
Authorized driving (50 iButton keys)
Immobilizer
Online tracking
Low energy consumption in deep sleep mode
FM1100 is light terminal with GPS/GLONASS and GSM connectivity, which is able to get device coordinates and other data and transfer them via GSM network. This device is perfectly suitable for applications where location acquirement of remote objects is needed. So you can track your remote objects (trucks, cars etc) quickly and easily.
In case of losing connection FM1100 can store up to 8000 records, and once the connection is established the device will send stored data via GPRS. So you won't lose your data (coordinates, sensors data and etc.).
FM1100 can perform tasks on remote objects, such as monitoring engine status, controlling truck's door etc.

Application:
Track and trace
Road assistance
International logistics
Personal car's and van tracking
Fleet management

Small tracker with internal GPS/GSM antennas and battery

  • Internal GSM and GPS/GLONASS antenna
  • Integrated internal backup battery
  • LVCAN200, ALL-CAN300 functionality support
  • Integrated scenarios (Overspeeding, Authorized driving , Immobilizer)
  • Small and easy to mount case

FM1120 Scheme



TECHNICAL DETAILS

GSM:

  • Quad-band 900/1800 MHz; 850/1900 MHz
  • GPRS class 10 (up to 85,6 kbps);
  • SMS (text/data)

GPS/GLONASS:

  • NMEA protocol compatible. Messages: GGA, GGL, GSA, GSV, RMC, VTG, TXT
  • 32 channel GPS/GLONASS receiver
  • Not less than -160 dBm

Interface:

  • 1 Digital Input Reserved for Ignition Status Monitoring
  • 2 Digital Inputs
  • 1 Analog Input (10V or 30V range)
  • 2 Digital Open-collector Outputs (connecting external relays, LED, buzzers etc.)
  • 1-Wire® temperature sensor
  • 1-Wire® iButton
  • Motion sensor
  • Power supply (+10…+30) V DC
  • Internal GSM antenna
  • Internal GPS/GLONASS antenna
  • Integrated backup battery
  • 2 Status LEDs
  • USB Port
  • Configuration and firmware upload (FOTA and via USB cable)

Features:

  • Small and easy to mount case
  • Internal  GSM  antenna  and  Internal  GPS/GLONASS antenna  allow  mount FM1120  much easier
  • GPS/GLONASS and I/O data acquisition
  • Real Time tracking
  • Smart algorithm of data acquisition (time, distance, angle, ignition and event based)
  • Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
  • Smart algorithm of GPRS connections (GPRS traffic saving)
  • Operating in roaming networks (preferred GSM providers list)
  • Events on I/O detection and sending via GPRS or SMS.
  • Scheduled 24 coordinates SMS sending
  • 5 geofence zones (rectangular or circle)
    • Auto  Geofencing  crested  for  car  towing  detection  and  car  theft  prevention
  • Deep Sleep mode (less  than  2  mA power  consumption)
  • FOTA (firmware updating via GPRS)
  • 3  operational  modes (Home,  Roaming,  Unknown)  based  on  operator
  • Integrated  scenarios:
    • Over  speeding  to  secure  driver  and  prevent  penalties
    • Immobilizer  function
    • Authorized  driving  (1-Wire®  iButton  ID  keys  up  to  50  iButton  keys)use  to  prevent  stealing  or indicate  drivers
    • Trip  start  and  end  detection
  • FM1120  supports  a  remote  logs  reading
  • FM1120  supports  remote  diagnostic  logs  functionality  using  GPRS.  Possible  issues  resolving  becomes faster .  Manufacturer can  read  logs  remotely  using  SMS/GPRS  to  diagnose  the  FM1120  and  timely  respond to  the  fault

Tracker Model FM1200/1202/1204

Waterproof GPS/GSM vehicle trackerFM1202-gps tracker
Waterproof housing (IP67)
Large Flash memory (16MB!)
To store records up to 120 days in case of lost connection or in roaming
Remote logs reading
For remote issue solving with manufacturer
Configurable device behavior
To customize the data aquire&sending for different application and GSM costs saving
Precise online tracking
Under time, distance and corner alteration
Integrated scenarios:
- Overspeeding to secure driver and prevent penalties
- Authorized driving (50 iButton keys) to prevent stealing
- Immobilizer
Integrated back-up battery (Ni-MH or Lion)
FM1202/1204 is a terminal with GPS and GSM connectivity, which is able to determine the object’s coordinates and transfer them via the GSM network. This device is perfectly suitable for applications, which need location acquirement of remote objects. It is important to mention that FM1202/1204 has additional inputs and outputs, which let you control and monitor other devices on remote objects. FM1202 also has a USB port for device status log output and entering configuration.

TECHNICAL DETAILS:
GSM:
Quad-band 900/1800 MHz; 850/1900 MHz
GPRS class 10 (up to 85,6 kbps);
SMS (text/data)
GPS:
NMEA, GGA, GGL, GSA, GSV, RMC, VTG protocol compatible
32 channel GPS/GLONASS receiver
-161 dBm sensitivity
Interface:
1 Digital Input Reserved for Ignition Status Monitoring
2 Digital Inputs
1 Analog Input (10V or 30V range)
2 Digital Open-collector Outputs (connecting external relays, LED, buzzers etc.)
1-Wire® protocol
Power supply (+6...+30)VDC
2 Status LEDs
Configuration and firmware upload (FOTA and via cable)

Features:
Hermetic enclose IP67
Internal High Gain GSM antenna
Internal High Gain GPS/GLONASS antenna
GPS/GLONASS and I/O data acquisition
Real Time tracking
Smart data acquisition (based on time, distance, angle, ignition and events
Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
Smart algorithm of GPRS connections (GPRS traffic saving)
Operating in roaming networks (preferred GSM providers list)
Events on I/O detection and sending via GPRS or SMS.
Scheduled 24 coordinates SMS sending
5 geofence zones (rectangular or circle)
Deep Sleep mode (less power consumption)
FOTA (firmware updating via GPRS)
Motion sensor
Small and easy to mount case
3 operational modes (Home, Roaming, Unknow) based on operator
Operation mode presets:
Advanced overspeeding detection
Driver identification (1-Wire® iButton ID key)
